Siemens Hot Water Volumetric Meter WFW240.D080

Home page \ Products \ Autonomy Materials \ SIEMENS Products \ Siemens Volumetric Meters \ Siemens Hot Water Volumetric Meter WFW240.D080


Product code: 11241
info

available



There are 0 products in cart

:

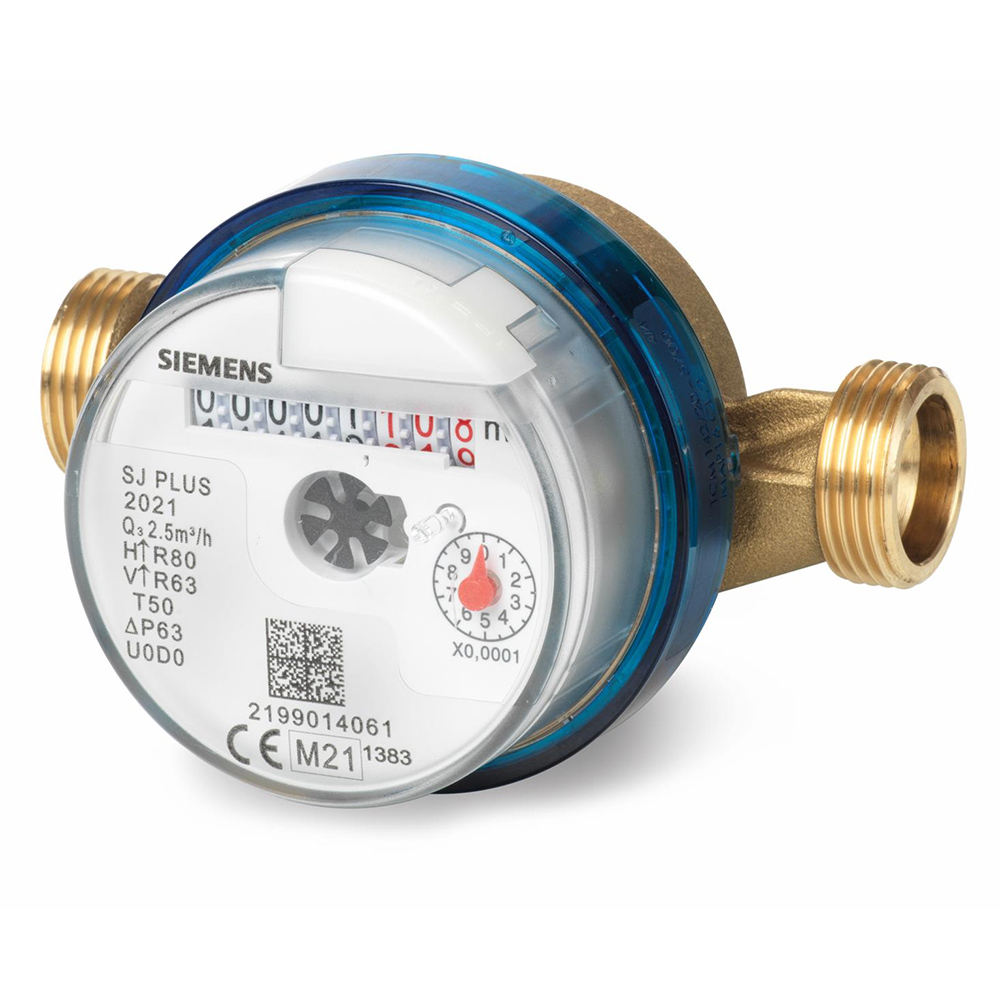

Mechanical single-jet hot water meter with module slot, Q3 = 2.5 m³/h, L = 80 mm, G ¾"

  • The mechanical single-jet impeller type meters are of compact design and used for measuring hot water consumption.
  • They are available as wall-mounted dry runner versions in different sizes, with a flow-measuring section body made of brass.
  • The cumulated consumption value acquired by the water meter can be read out on-site. All water meters WFW240...
    can be retrofitted with a pulse module equipped with Reed contact (WFZ44) or Reed contact with the Namur circuit.



Technical summary

PN class

PN 16

Flow rate Q3

2,5 m³/h

Installation length

80 mm

Connecting thread

G ¾"

Maximum water temperature

90 °C

Indication

m3; 0…99999.999
