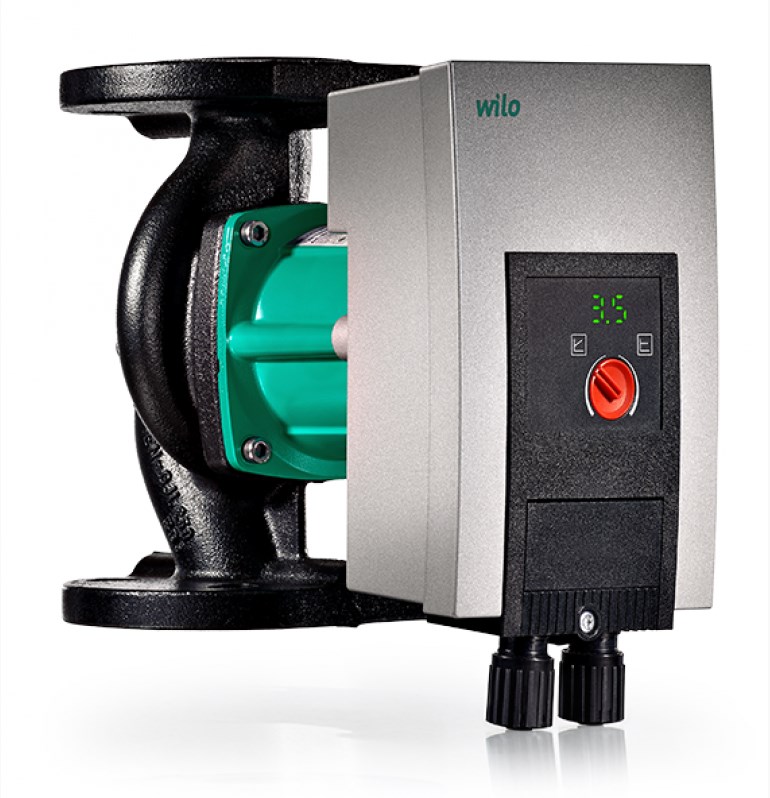

Wilo Yonos Maxo 30/0,5-10

Home page \ Products \ Circulators - Pumps \ Wilo Yonos Pico-Para-Maxo- Atmos \ Wilo Yonos Maxo 30/0,5-10

Not available for purchase

Design
Lubricant pump with screw connection or flange connection, EC motor with automatic power adjustment.

Application
Heating installations of all systems, industrial circulation installations, air conditioning installations and closed cooling circuits.

Technical data

Energy Efficiency Index (EEI) & le; 0.20
Permissible temperature range -20°C to +110°C
Electrical connection 1~230 V, 50/60 Hz
IPX4D degree of protection
Connection flange DN 32 to DN 80
Maximum working pressure, basic type: 6/10 bar or 6 bar (special type: 10 bar)
Product Special Features/Benefits
The LED display provides full supervision of nominal gauge, rpm or potential errors.
Easy adjustment via three-speed steps when replacing a conventional, common pump
Simple electrical connection thanks to the Wilo plug
Protection of plant availability through the general fault message
Compact size and recognized easy handling
