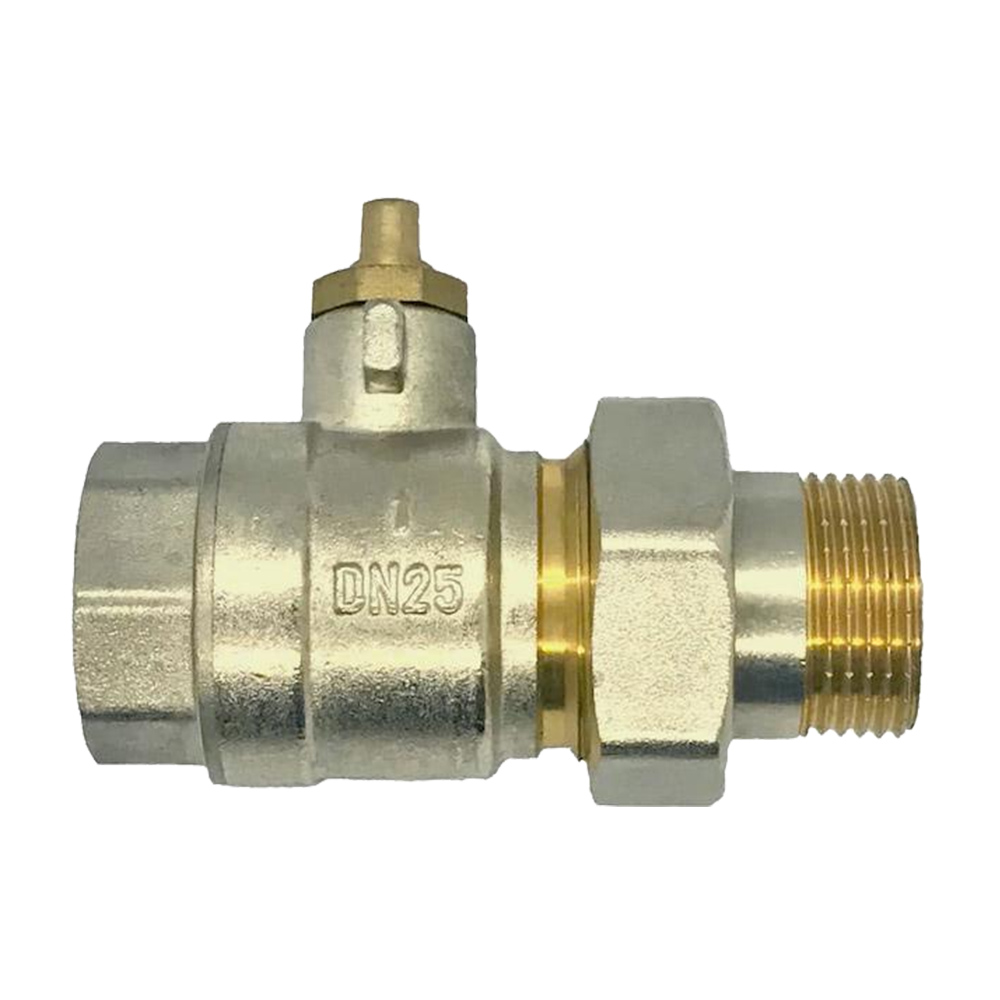

COMAP Diode Ball Valve with1” Fitting

Home page \ Products \ Autonomy Materials \ BEV Autonomy Electro-valve \ COMAP Diode Ball Valve with1” Fitting

Product code: 11011

available

There are 0 products in cart

Quantity:

COMAP 1” autonomy ball valve diode.
Vana with silver color.
Suitable for BEV and BEV EURO engines.

SPECIFICATIONS
Full-flow body diode made of heavy-duty forged brass, seals with double o-rings on the shaft, and Teflon on the rotating ball.

1 conical fitting with rubber
Brass body EN12165-CW617N nickel plated
Brass ball EN12164-CW614N chrome plated
EN12164-CW614N brass shaft with EPDM o-ring
Medium temperature 0°/ +95°C
Operating pressure PN16
Maximum differential pressure 10bar
CE certification
2-year warranty
Made in France

INSTALLATION INSTRUCTIONS
Suitable for BEV and BEV EURO engines.
When fitting the electric motor to the valve, the valve stem must be clean of foreign bodies and the shaft must be in the "closed" position exactly.

CHARACTERISTICS

WEIGHT	626 g
DIMENSIONS	L 10,1 x W 4,6 x H 7,6 cm
BRAND	COMAP
CROSS SECTIONS	1˝
IT FITS	BEV, BEV EURO
