Description of Kermi Panel Radiators

KERMI's facilities are located in Plattling, Bavaria, Germany. The functional design of the facilities as well as the use of the most modern production technologies, allows the company to offer its customers excellent services and quality products. Strict quality control throughout the process is ensured by the German TUV certification that covers KERMI products.

Flexibility is the key that enables KERMI to serve the particular needs of different markets within the European Community, adapting its products to meet the particular needs of each market.

The KERMI radiators of top aesthetics and quality, awarded for their excellent design (Industrial Design Award - Hannover '95), have a high coefficient of thermal transition so that they perform even at low operating temperatures. Classic heating installations operate with water at a temperature of 90°C / 70°C.

Modern heating installations, on the contrary, operate with water at a temperature of 70°C / 55°C. KERMI radiators are designed to work efficiently even at these temperatures.

The wide variety of dimensions makes KERMI bodies the most ideal solution either for Panel bodies or for towel rails. Panel bodies are produced in a range of dimensions from 300 to 900 mm high and from 400 to 3,000 mm long, including all types of heating plates and meanders (11K, 21K, 22K, 33K).

They are made of high-quality st12-03 steel produced at the Preussag plant in Germany (of which KERMI is a member) with a test pressure of 13 bar and an operating pressure of 10 bar. They are available in white color RAL9001.

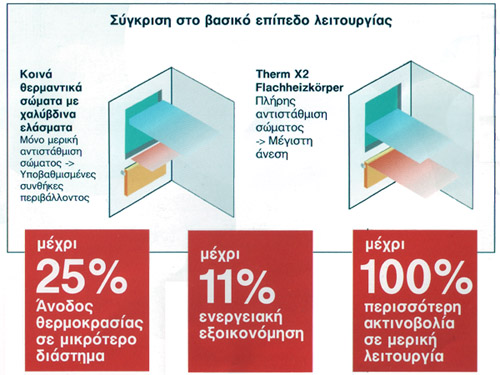

KERMI radiators are also distinguished by the innovative X2 system. This is a patented system that allows the heater to operate the heating plates in series. The water first passes through the front heating plate and then passes to the back. In this way, radiators with X2 technology have the ability to increase their temperature 20% faster than common panel-type radiators.

At the same time, the rear heating plate is kept at a lower temperature, thus reducing losses to external walls and windows. Due to the series operation, up to 100% more radiant load is achieved compared to conventional radiators, resulting in a feeling of comfort with lower intake temperatures.

Thus they achieve a reduction in fuel consumption of up to 11% which leads directly to energy and money savings. At the same time, due to their high radiation rate, they are perfectly combined with heat pumps for heating systems with low temperatures of 49°C / 39°C.

So it becomes clear that the X2 technology of KERMI radiators together with the excellent manufacturing quality make KERMI radiators the ideal solution for any type of heating.
