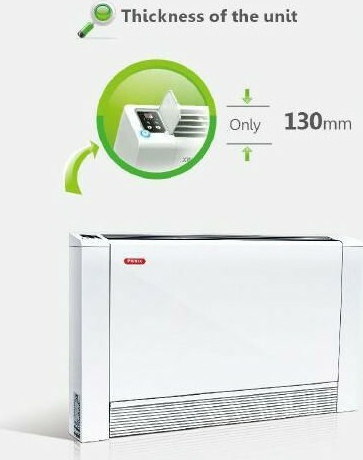

Their excellent construction, modern design, and thin design (only 13 cm thick) allow these bodies to be placed in any place or space without altering their aesthetics.

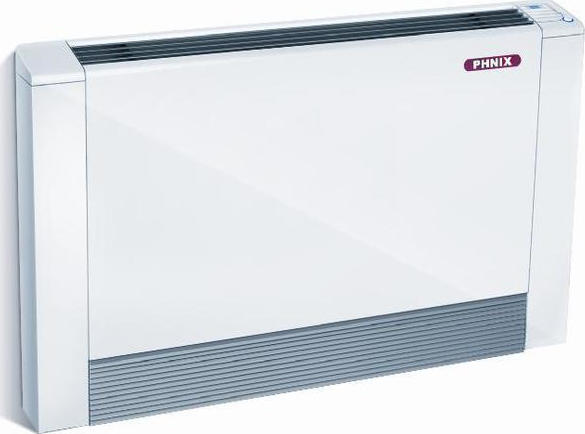

The thin (only 130mm thick) PHNIX water FAN COIL with its excellent construction, modern design, and silent operation makes your life more comfortable.
SILENT MODE.
The operation of the flow fans with the new air direction technology makes the PHNIX water fan coil extremely quiet (25dB) allowing it to be placed even in a bedroom.
HIGH PERFORMANCE.The heat dissipation capacity of the PHNIX Fan coil is twice that of common bodies. So you can save up to 30% more energy as well as more space since the performance of one PHNIX Fan coil is equivalent to three common panel bodies.Also, Phnix Water Fan Coils enable us to heat or cool a space, as long as there is a corresponding energy production unit. (chiller, heat pump, etc.).
EASY HANDLING.With PHNIX's intelligent control, the operation of the water Fan Coil is particularly easy and we can request heating, cooling, dehumidification, sleep program, desired room temperature, and automatic operation with a series of many parameters.
IMPORTANCE TO DETAIL.The PHNIX Water Fan Coil element is made of copper piping and an aluminum exchanger thus ensuring high performance and long life.The active carbon filters found in the unit filter the air in the room, offering a healthy environment.
PHNIX Water Fan Coils can be found in 5 sizes and can be placed on the floor or on the wall.
Thin Water Fan Coil
MODEL
PFP-025
PFP-040
PFP-060
PFP-080
PFP-100
HEATING CAPACITY(1)
W
1350
2500
3350
4300
5200
BTU/H
4600
8500
11400
14600
17800
HEATING CAPACITY(2)
2550
3950
5750
7200
9400
8700
13500
19600
24600
32000
COOLING CAPACITY
1000
1900
3500
4350
3400
6500
12000
14800
CURRENT POWER
V/Ph/Hz
220-240V/50Hz
AIR SUPPLY
m 3/h
160
320
460
580
650
DIMENSIONS
mm
700/130/670
900/130/670
1100/130/670
1300/130/670
1500/130/670
1. HEATING: Room temp. (DB/WB): 20oC/-, Water temp. (inlet/outlet): 50oC/45oC
2. HEATING: Space temp. (DB/WB): 20oC/- , Water temp. (inlet/outlet): 70oC/60oC
COOLING : Room temperature (DB/WB): 27oC/19oC, Water temperature (inlet/outlet): 7oC/12oC
Warranty. A 2-year warranty is provided.
