Autonomy Engine "EURO"
The body is made of heavy-duty forged brass.
Seals with double o-rings on the shaft & with a Teflon o-ring on the rotating ball.
The gear reducer is designed for continuous operation, in all conditions, without problems.
It is used for the automatic control of liquids & gases, which are not flammable.
Specifications
Operating Voltage: 220V, 50HzTotal absorbed power: 9.0 VA (6 Watt motor)Static pressure: 20 Bar maxDifferential pressure: 0-10 BarMedium temperature: -10oC to +90oCShaft torque: 18 Nm MAX - 12 Nm FixedCommand time: 56 seconds (1/4 rpm)
Available for log sizes: 1/2" - 3/4" - 1" - 1 1/4"
CE certification - Electrical protection IP54
Pressure drop: 0.2 mm/2.2m3 OF H2O
Auxiliary contact: 7(1) A, 230 V
Installation instructions
CAUTION:According to the current legislation & for your safety, the installation of the autonomous solenoid valve & the electrical connections must be done by a licensed electrician.

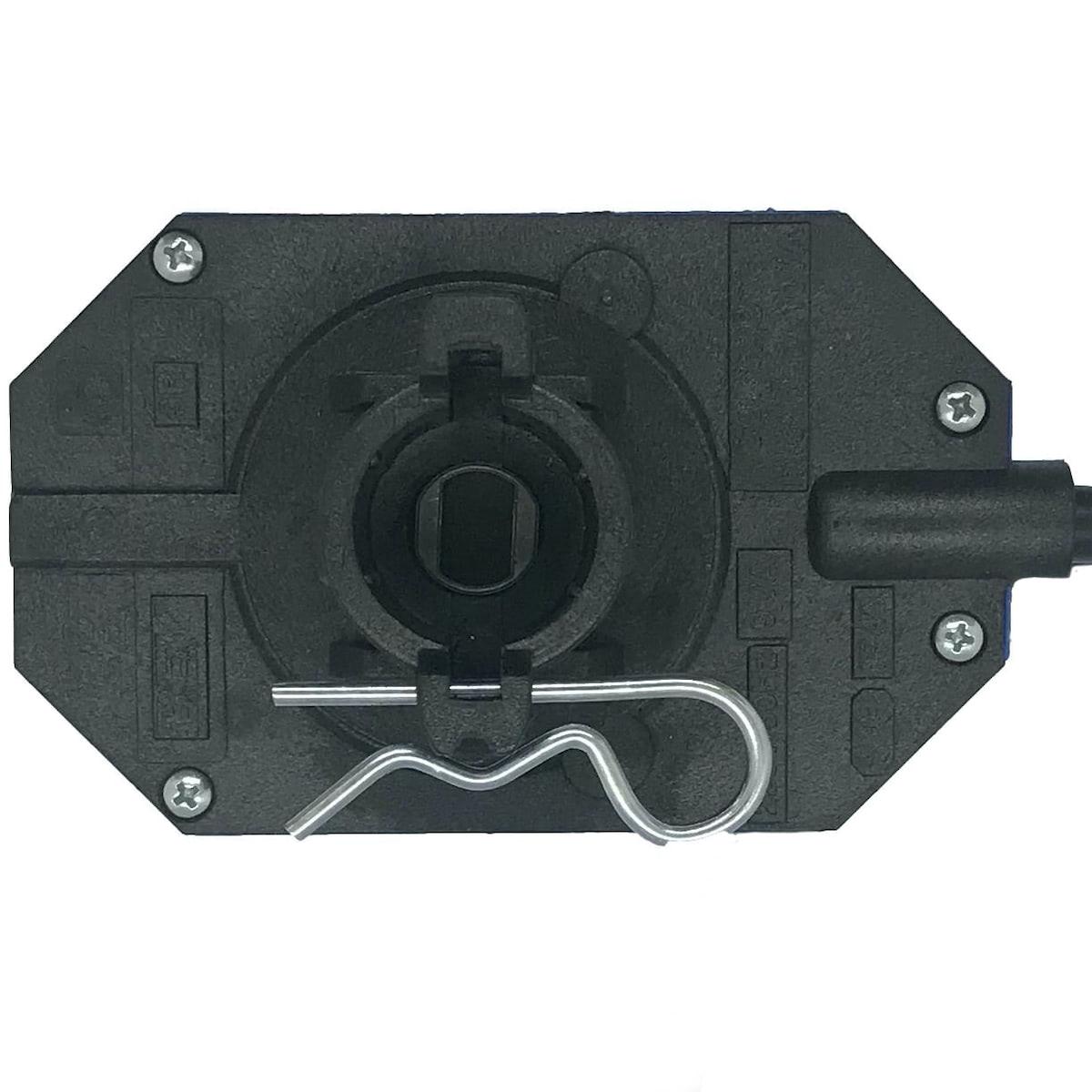

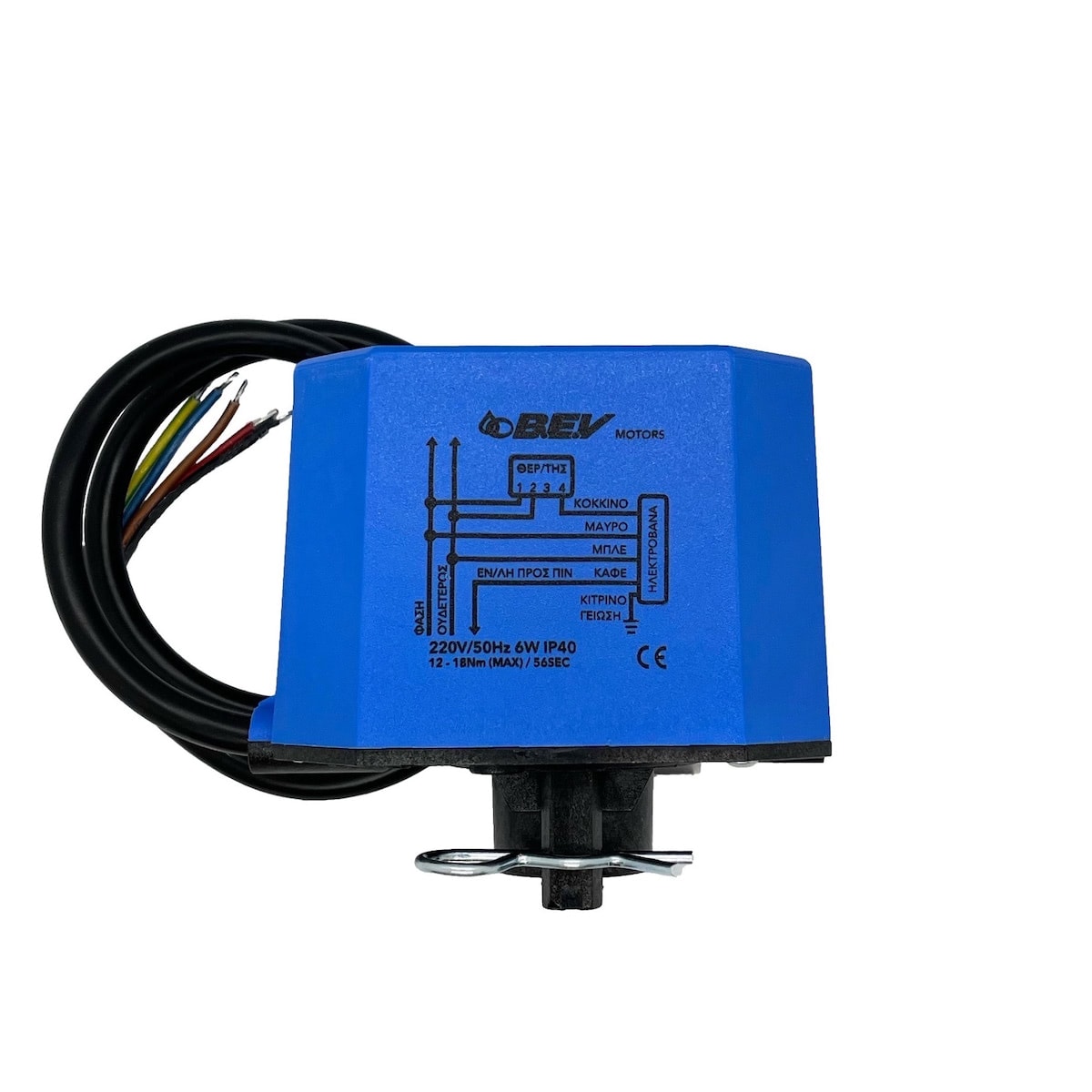

1. Place the engine on the trunk, making sure it is clean of foreign objects (limes, mud, paints, etc.).2. The trunk axis should be in the closed position exactly.3. Press the motor gently so it nests into place on the trunk & tightens the screw with a Phillips screwdriver.4. Connect the motor cable as shown in the diagram on the motor cover.
The five wires according to their coloring are connected as follows:
-RED: command from thermostat (IN)
-BLACK: phase (F)
-BLUE: neutral (N)
-BROWN: command to boiler room panel (OUT)
-YELLOW: ground (GND)
BUGATTI, COMAP, TIEMME, Valves with similar shaft-neck
BAUPA, BEV, BEV comet, BEV EURO, BEV therm, BRUNATI, CARRIER, CBV PLUS, CHARMEG μπλέ, CLOCKNET, COMAP, ECOFER, KLM, RAM με ασφάλεια, RON, SIRIO, SUN, TEMPA MOTORS with fuse, THERMOSTAHL blue, TIEMME green, Engines with similar shaft-neck
5 YEAR WARRANTY
