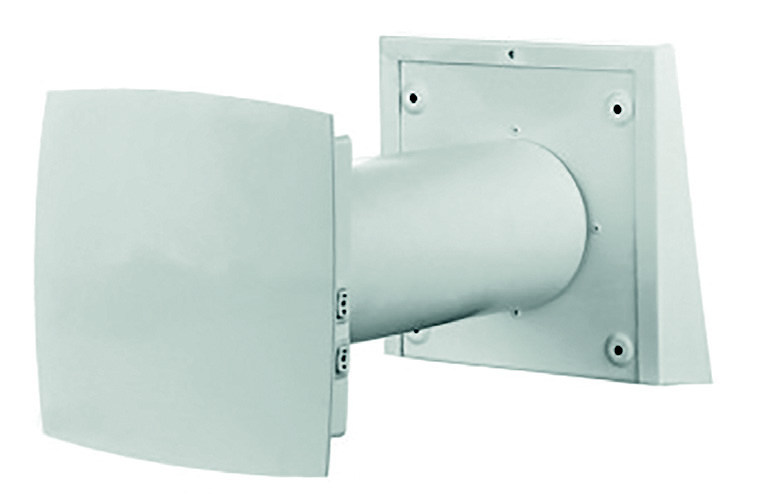

Assolo 091 Air Recovery System

Air recovery: The joy of living in a healthy place.
The quality of the air we breathe in our homes poses risks from pollutants that, in addition to the unpleasant odor they create, burden our health.

Germs, dust, mites, and cleaning chemicals, are some of the important pollutants that "live" with us because we cannot separate them from the air we breathe.

So we try to solve the problem by opening the doors and windows but creating a significant loss of thermal energy in winter and summer at a significant financial expense. Everyone is convinced that the outside air is better than the one it is going to replace but technical research tells us otherwise.

New technologies dedicated to energy saving and well-being give a different way of interpreting "air" in the new Controlled Mechanical Ventilation (CMV) system. By filtering the incoming air and recovering the maximum thermal energy of the exhaust air, the increase of personal well-being and the creation of added value in real estate, which is equipped with the rationalization of consumer systems, is a given. A must-have of the era in sustainable consumption and in the reduction of operating costs.

The new thermal and technical design, which responds to European Directive 91/2002, has shown the way to the use of high energy efficiency systems that provide a tangible contribution to our well-being and support in the daily management of our services.

Product Design
Assolo's innovation in relation to existing means of ventilation has the ability not only to exchange the air in the room but at the same time to recover it, heating or cooling it, depending on the prevailing thermal conditions inside the space.

The heat recovery achieved with Assolo reaches 93%, along with low power consumption (5W) and absolutely silent operation (13 Db).

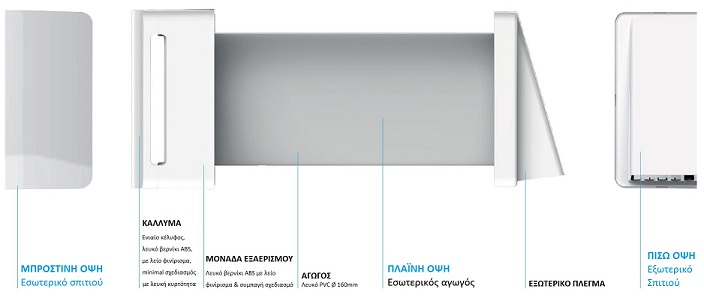

Assolo 91-1.0 mechanical ventilation system design

Heat Recovery Ventilation & Ventilation Systems are the ventilation systems that filter the incoming air and recover the maximum thermal energy of the exhaust air.

The ventilation system with heat recovery not only "freshens" the air in the room, but at the same time recovers the rejected thermal energy, heating or cooling it, depending on the prevailing thermal conditions inside the room.

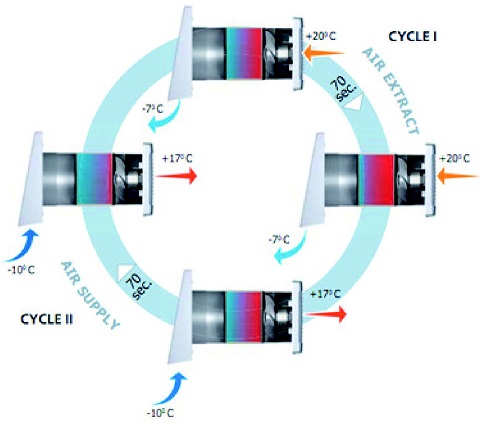

Indicative Mode of Operation of a Ventilation & Ventilation System with Recovery in the Winter period (heating period)

Advantages:
- Easy maintenance: the device is designed to make maintenance work easier, in order to optimize inspection and cleaning.

- Easy cleaning: the ability to disassemble each part of the cleaning product makes the cleaning process quick and easy. With a simple rinse under running water (for non-electrical parts such as filters) and an easy pass to the other surfaces, the unit will easily be ready for periodic cleaning.

- Adjustment of the tube length: The variety of walls in terms of thickness makes it necessary to use a flexible - telescopic tube: the Assolo can be reduced from the maximum length of 40cm to what is required, with a minimum of 25cm

Characteristics:

- Ceramic exchanger with efficiency of up to 90%.
- Compact, flexible, and easy to use
- Made with durable materials of high quality and aesthetics.
- Double separate inlet and outlet air filters, washable and easily removable.
- Does not require condensate drainage
- Adjustable suction speed with a capacity of up to 60 m3/h
- Air intake and exhaust alternately.
- Electronic commutation motor (brushless)
- Reduced power consumption (5W)
- The silent devices can be installed on the perimeter walls of the house and have a variable length from 250 to 400mm.
- The air duct can be extended by a pipe of the same diameter at a distance of up to 3m. For this pipeline, when a bypass is necessary the maximum length of the pipeline will be 2.5m (including a 90° bend)
- Simple ventilation system that does not require ducts.
- Washable and easily remove filters and heat exchanger
- Suitable for replacing an existing fan with minimal intervention.
- Fan speed adjustment button. This allows the device's operating speed to be adjusted from a minimum to a maximum value (2 speeds).
- The 2 buttons of the electrical contacts (on-off and speed control) can also be placed on the wall.
